Display last NG image with the processing unit title which caused last NG

Overview

Display last NG image with the processing unit title which caused last NG.

Specification of this example

Behavior

This example displays last NG with the processing unit title which caused last NG.

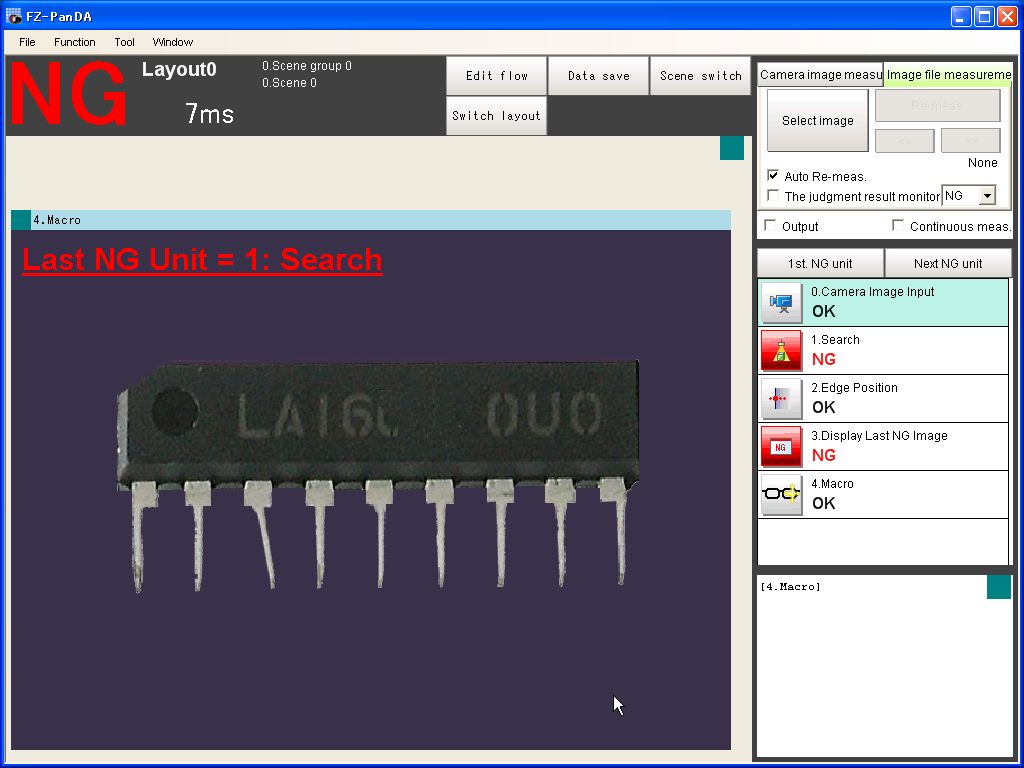

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically displays last NG image with the processing unit title which caused last NG in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search
2.	Edge Position
3.	Display Last NG Image
4.	Macro

The Macro Program below segment is to be set in '4.Macro'.

Macro Program

*MCRINIT
    'Initialize                                   '(1)
    FONTSIZE& = 32
    XPOSITION& = 10
    YPOSITION& = 10
    HEADER$ = "Last NG Unit = "

Return

*MEASUREPROC

    MYUNIT& = UnitNo
    INDEX& = -1

    For CNT& = (MYUNIT& - 2) To 0 Step -1         '(2)
        JUDGE& = UnitJudge(CNT&)

        If JUDGE& = JUDGE_NG Then
        INDEX& = CNT&
        Exit For
        EndIf
    Next

Return

*MEASUREDISPG
    SetTextStyle FONTSIZE&, TA_TOP, JUDGE&, 0, FONTSTYLE_BOLD + FONTSTYLE_UNDERLINE    '(3)
    If INDEX& >= 0 Then
        DrawTextG HEADER$ + Str$(INDEX&) + ": " + UnitTitle$(INDEX&) , XPOSITION&, YPOSITION&, 0
    Else
        DrawTextG HEADER$ + " None", XPOSITION&, YPOSITION&, 0
    EndIf

Return

The macro program is in

this link.

Explanation

(1)Initialize parameters(ex.font size of message) when initialize measurement.
(2)Get a unitNo of processing unit which last NG occured.
(3)Display the name of processing unit which caused last NG in Image Window.
