Make an average of last five times of measurement result and display it in Image Window

Overview

Make an average of last five times of measurement result and display it in Image Window.
This techinique is used for canceling small variation caused by noise.

Specification of this example

Behavior
Make an average of last five times of measurement result from target processing unit (in this example [Search]) and display it.

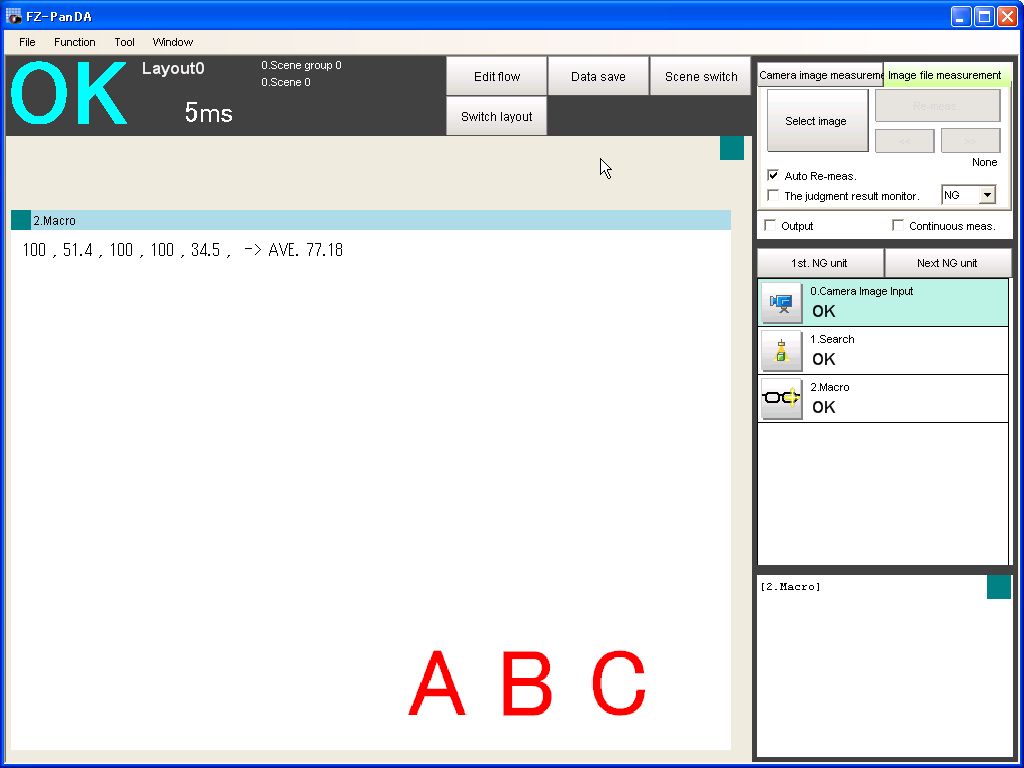

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then the average value of last five times is shown in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Search
2.	Macro

The Macro Program below segment is to be set in '2.Macro'.

Macro Program

*MCRINIT
    MAX& = 5                                          '(1)
    Dim WRKCR#(MAX&)
    For LP& = 0 To MAX& - 1
        WRKCR#(LP&) = -1
    Next
    PARAM& = 1
Return

*MEASUREPROC
    MYUNIT& = UnitNo

    WRKCR#(CNT&) = UnitData(MYUNIT& - 1, "CR")        '(2)
    CNT& = CNT& + 1
    If CNT& = MAX& Then
        CNT& = 0
    EndIf
Return

*MEASUREDISPG
    SUM# = 0                                          '(3)
    BUF$ = ""
    For LP& = 0 To MAX& - 1
        If WRKCR#(LP&) <> -1 Then
            SUM# = SUM# + WRKCR#(LP&)
            BUF$ = BUF$ + Str$(WRKCR#(LP&)) + " , "
            PARAM& = LP& + 1
        EndIf
    Next
    AVE# = SUM# / PARAM&

    DrawTextG BUF$ + " -> AVE. " + Str$(AVE#), 10, 10, 0
Return

The macro program is in

this link.

Explanation

(1)Initialize parameters when initialize measurement.
(2)Get measurement results of previous unit via external reference data.
(3)Make an average of last five times of measurement result.
