Calculate the approximate outer circumference of a circular workpiece

Overview

This example calculates the approximate outer circumference of a circular workpiece.

Specification of this example

Behavior
This example measures outer edges of a circular workpiece by [Edge Position], calculates the approximate outer circumference of it, and displays the result in Image Window.

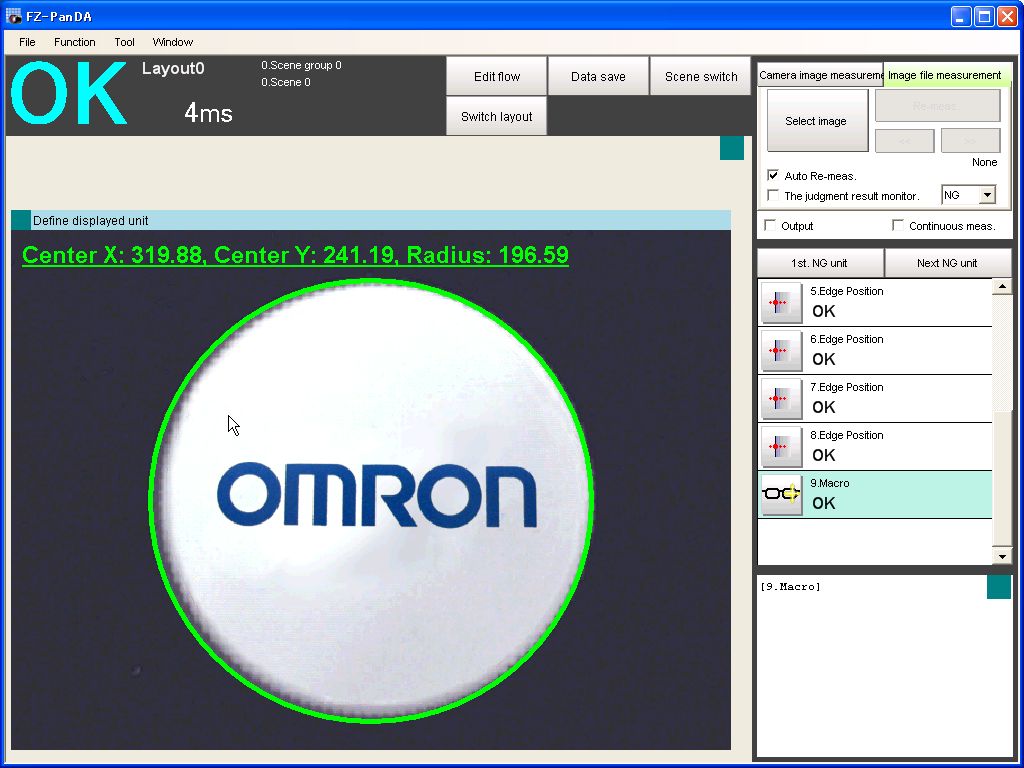

Screenshot

How to try this example
1.Click the link below, then the folder containing zip file automatically opens.

File

2.Right-click and hold on the zip file, and drop it on working window of FJ system. The images and scene data in zip file are loaded on the program automatically.

3.Re-measure the image. Then System automatically measures outer edges of a circular workpiece by [Edge Position], calculates the approximate outer circumference of it, and displays the result in Image Window.

How to implement

Scene data

Unit No.	Processing Item
0.	Camera Image Input
1.	Edge Position
2.	Edge Position
3.	Edge Position
4.	Edge Position
5.	Edge Position
6.	Edge Position
7.	Edge Position
8.	Edge Position
9.	Macro

The Macro Program below segment is to be set in '9.Macro'.

Macro Program

*MCRINIT
    UNITNO& = 1        '(1)
    LOOPCOUNT& = 8
    FONTSIZE& = 24

    Dim POSX#(7), POSY#(7)
Return

*MEASUREPROC
    '(2)
    For COUNT& = 0 To (LOOPCOUNT& - 1)
        GetUnitData (UNITNO& + COUNT&), "X", POSX#(COUNT&)
        GetUnitData (UNITNO& + COUNT&), "Y", POSY#(COUNT&)
    Next

    ApproximationCircle LOOPCOUNT&, POSX#(), POSY#(), CENTERX#, CENTERY#, RADIUS#    '(3)

Return

*MEASUREDISPG
    '(4)
    SetDrawStyle PS_SOLID, 5, JUDGE_OK
    DrawCircle CENTERX#, CENTERY#, RADIUS#, 0

    '(5)
    SetTextStyle FONTSIZE&, TA_TOP, JUDGE_OK, 0, FONTSTYLE_BOLD + FONTSTYLE_UNDERLINE
    DrawTextG "Center X: " + Str2$(CENTERX#, 3, 2, 0, 0) + ", Center Y: " + Str2$(CENTERY#, 3, 2, 0, 0) + ", Radius: " + Str2$(RADIUS#, 3, 2, 0, 0), 10, 10, 0    '(6)

Return

The macro program is in

this link.

Explanation

(1)Initialize parameters(ex.measurement times of [Edge Position] ) when initialize measurement.
(2)Get the outer edges of a circular workpiece.
(3)Calculate the approximate outer circumference of it.
(4)Display the center position and radius of the circumference in Image Window.
(5)Draw the circumference in Image Window.
