Processing Item List > Input image > Camera Image Input HDR Lite > HDR setting (Camera Image Input HDR Lite)HDR setting (Camera Image Input HDR Lite)
Specify the dynamic range and brightness settings.

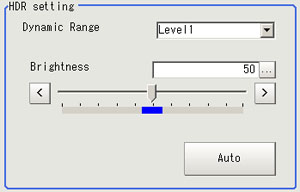

- In the Item Tab area, tap [HDR Setting].
- When automatic is tapped, the dynamic range and the brightness will be automatically set. If automatic does not produce the desired result, manually adjust the dynamic range and brightness in the HDR settings.ItemSet value
[Factory default]DescriptionDynamic Range[Level1] to Level4Specify a dynamic range. The larger the value is, the broader the dynamic range to be combined will be.Brightness1 to 100Specify the brightness settings. The larger the value is in this setting, the longer the exposure time will be. When using a high-speed line, check to make sure that there is no image blur in an actual environment. The degree of image blur can be lowered by decreasing the brightness even when the movement speed of the object is fast.- Correlation between the level and the dynamic range
- Correlation between the level and the dynamic range
Important
- For stable operations, we recommend setting the brightness within the range where the blue bar does not enter the red region. Measurement values may be different if the recommended range is exceeded. Be sure to thoroughly check the measurement result and set the brightness value.
